Receiver RF Assembly Mixer IF Board

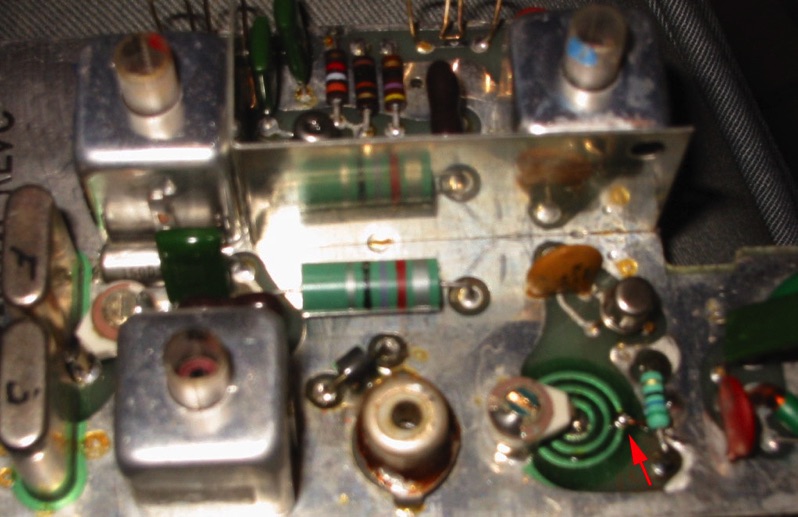

On the RF assembly mixer if board PL19C331099 Group 1 / PL19C320153 Group 1. Short 1/2 turn on L502. Raise one end if R503 so you can ground to shortest path 1/2 turn from ground end. I broke the original resistor and replaced it with a resistor of the same value.
