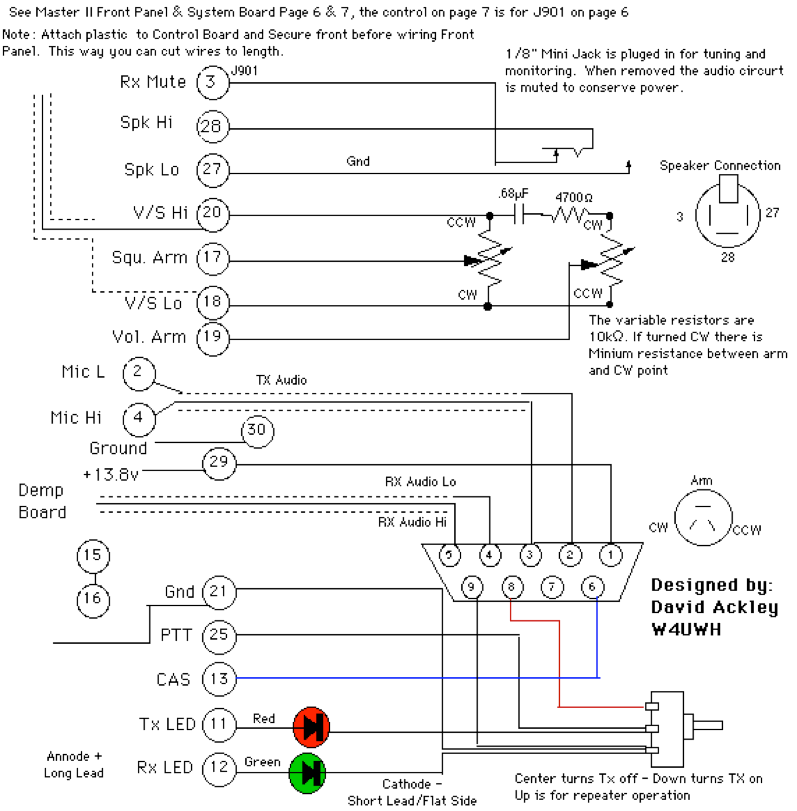

Many years ago I switched to base station cabinets that have pull out drawers. The following schematic is a standard method W4UWH used to modify a mobile GE Master II into a repeater when he was using a mobile housing to hold the repeater. Mobile cards, base stations cards, and repeater cards are interchangable.
