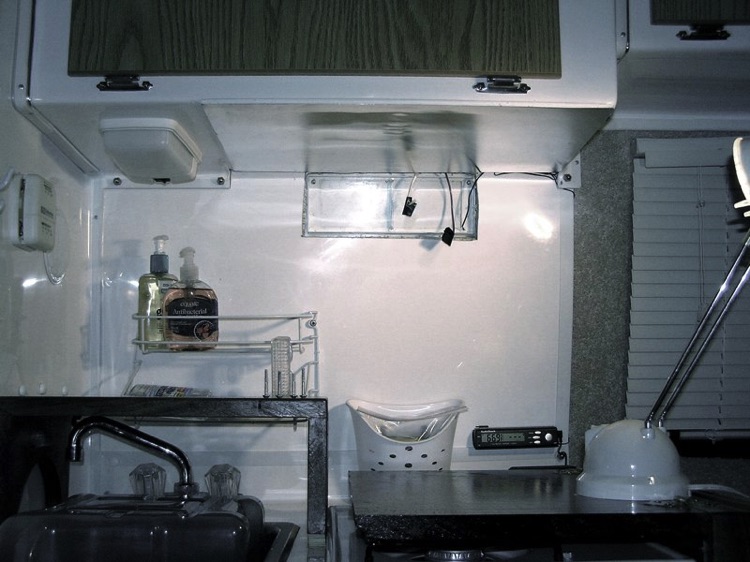

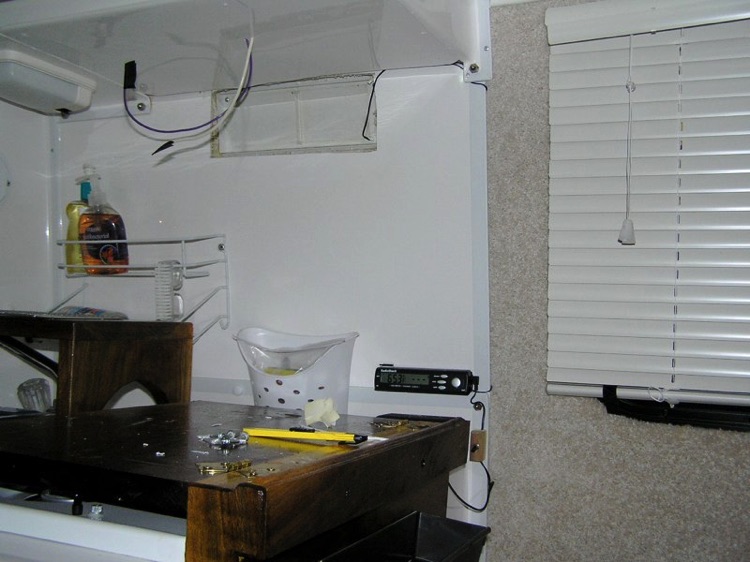

Range Hood Removed
Range Hood Removed
Range Hood Removed
Range Hood Removed

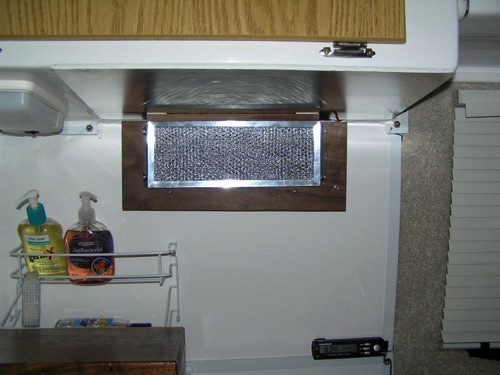

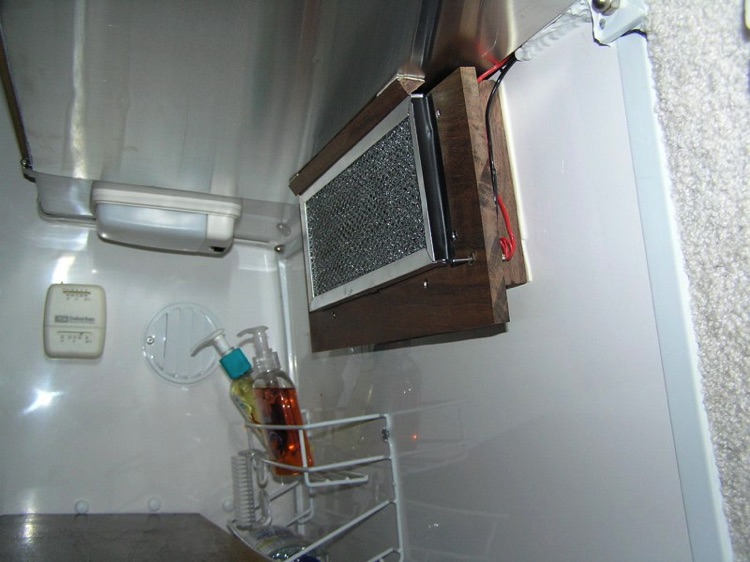

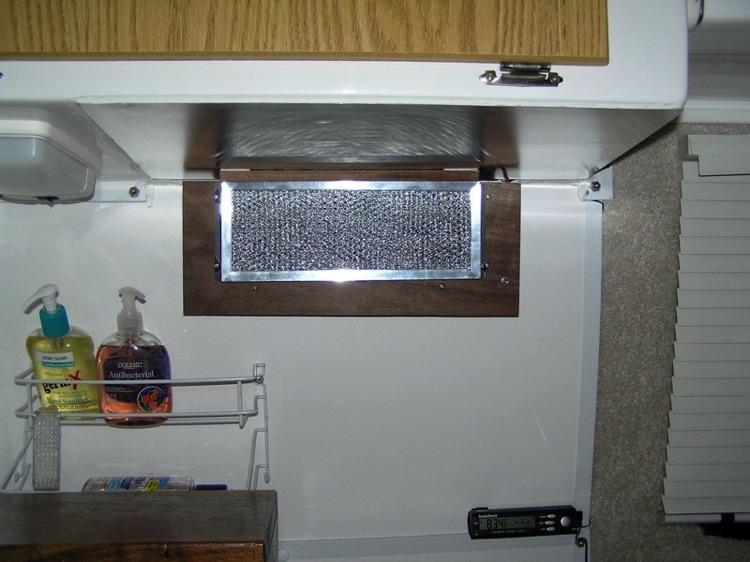

Fan Installed
Fan Installed
Fan Installed
Fan Installed

Out There’s thread on Range Hood Removal and Computer Fan Replacement from the Casita Club Forum got me started on the modification. Hood removal is easy - 4 screws, a little silicon. Pull the carpet up in the cabinet above, remove the small wooden blocks that held the hood screws, and reroute the wires. I ordered 3 Scythe Kama 92mm Fans from Xoide. Fans come in just about any size you want and the fans I bought were too big to fit in the vent rectangle cut by Casita. I planed a board down to 3/8” thick, cut 3 round holes for the fans, mounted the fans. I made a u-shaped frame the same thickness as the fans, surrounding the fans on three sides. I used 6 screws to attach the fans to the u-shaped frame. I used double-sided foam tape to mount the unit. I bought a vent filter and cut it down and attached with foam tape.

Click photos for larger view
